Description

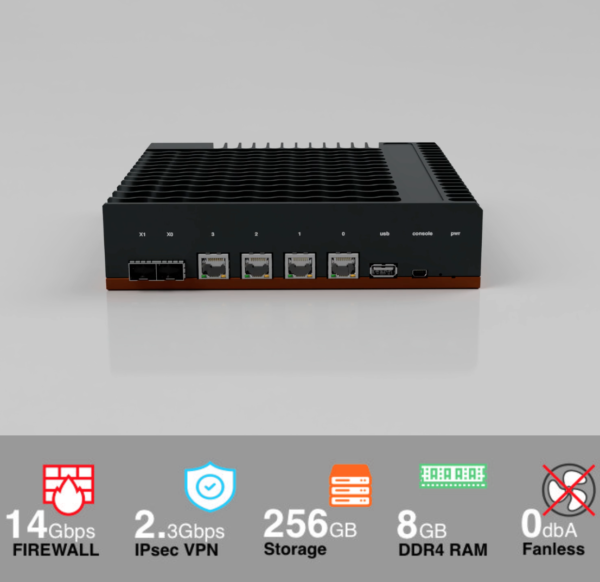

Models	DEC840	DEC850
Software
Preinstalled software	OPNsense®	OPNsense®
License	Open Source + 1 year free Business Edition	Open Source + 1 year free Business Edition
Hardware Specifications
SFP+ Ports [10Gbps]	2	2
GbE RJ45 Ports [ 10/100/1000Mbps ]	4	4
USB 3.0 Ports	2	2
Console Port	1	1
Internal Storage	256GB M.2. Solid State Flash	256GB M.2. Solid State Flash
Memory	8GB DDR4	16GB DDR4
CPU Cores	4 (max frequency 2.9Ghz)	8 (max frequency 3.1Ghz)
Virtual Interfaces (802.1q VLANS)1	4093	4093
System Performance
Firewall Throughput	14.6Gbps	17.6Gpbs
Firewall Packets Per Second	1200Kpps	1450Kpps
Firewall Port to Port Throughput	14.6Gbps	17.6Gpbs
Firewall Port to Port Packets Per Second	122000	1450Kpps
Concurrent Sessions	7000000	15000000
New Connections Per Second	50000	50000
Firewall Latency (average)	100us	100us
Firewall Policies (Recommended Maximum)1	10000	10000
IPsec VPN Throughput (AES256GCM16)	2.3Gbps	2.5Gbps
IPsec VPN Packet Per Second (AES256GCM16)	200Kpps	220Kpps
Threat Protection Throughput Packet Per Second	163Kpps	163Kpps
Threat Protection Throughput	~2Gpbs	~2Gbps
High Availability with State Synchronisation	Requires Two	Requires Two
Dimensions
Height x Width x Length (mm)	48 x 199 x 186	48 x 199 x 186
Height x Width x Length (inches)	1.89 x 7.83 x 7.32	1.89 x 7.83 x 7.32
Form Factor	Desktop (optional Wallmount)	Desktop (optional Wallmount)
Weight (appliance only)	1.9Kg	2.0 Kg
Weight (appliance + power supply / ac cord)	2.6Kg	2.7Kg
Environment
Power Requirements	100-240VAC, 50-60Hz	100-240VAC, 50-60Hz
Maximum Current (AC)	1.4A	1.4A
Power Consumption (Typical)	40W	45W
Heat Dissipation	136.5 BTU/hr	153.6 BTU/hr
Operating Temperature	0 to +50°C	0 to +50°C
Storage Temperature	-20 to +70°C	-20 to +70°C
Humidity	10-90% non-condensing	10-90% non-condensing
Regulatory Compliance
	FCC part 15 Class A, CE, Rohs	FCC part 15 Class A, CE, Rohs

¹ The user interface is designed for normal business usage, large rulesets, high number of users or interface assignments may be less practical.

Total Firewall Throughput is calculated based on system utilization and actual measured port-to-port performance (if both numbers are the same no measurement of system utilization was recorded and maximum theoretical throughput is likely to be higher). Maximum PPS is measured using IMIX. All throughput numbers are based upon maximum packets per second multiplied by standard 1514byte frame size minus additional overhead where applicable. IPsec traffic is measured using AES256GCM16 via a routed tunnel.Latency is measured as an average over 60 seconds with system at 80% of maximum load and 256byte UDP packages .  IPS performance is measured using a EMIX simulation. Concurrent sessions are based upon memory available, where one state consumes 1KB of memory and 1GB of memory is reserved for system tasks.

Supported SFP(+) Modules

While most standard LC-LC OM3 SFP+ modules and SFP+ Direct Attached Cables are likely to function we advise to select one of of the known compliant modules from the following list:

SFP+ (Up to 10G)

————————————————————————————–

TESTED & WORKING:

• [FIBER – SR] UP-TR-SR-CI 10G SFP+ 850nm 300m DOM  (Uptimed)
•  [DAC] ARUBA 10G SFP+ 1m DAC  (Aruba)
• [DAC] CISCO SFP-H10GB-CU1M 1m Direct Attach  (Cisco)
•  [DAC] NETGEAR AXC761 10G SFP+ PASSIVE COPPER CABLE 1M (MOST RECENT VERSION)
•  [FIBER – LR] SFP-10GLR-31 1/10G SFP+ 1310nm 10km  (FS)
•  [FIBER – SR] SFP-10GSR-85 10G SFP+ 850nm 300m  (FS)
•  [DAC] STARTECH DACSFP10G1M (Startech)
•  [DAC] SFPP-PC02 10G SFP+ DAC 2M (FS)
•  [DAC] SFPP-PC005 10G SFP+ DAC 0.5M  (FS)
•  [RJ45] SFP-10G-T 10GBASE-T SFP+ 30m  (FS)
•  [FIBER – SR] IBM FTLX8571D3BCL-IC 850nm
•  [FIBER – SR] UBIQUITI UF-MM-10G 300m 850nm
•  [DAC] UBIQUITI 10G 1M DAC
•  [FIBER-SR] Mellanox MFM1T01A-SR (Mellanox)

SFP (Up to 1G)

————————————————————————————–

TESTED & WORKING:

• [RJ45] SFP-GB-GE-T 10/100/1000BASE-T SFP 100m TESTED WITH S/N: F1940333300 (FS)
