Description
Models | DEC670 | DEC690 |

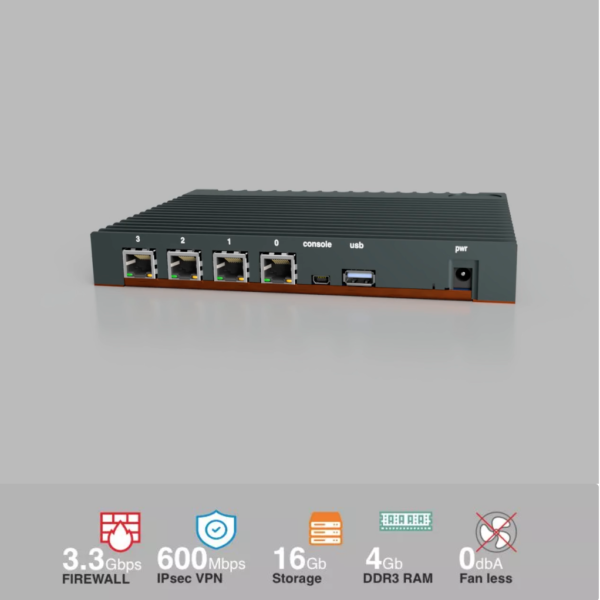

Picture: | ||
Software | ||
Preinstalled software | OPNsense® | OPNsense® |
License | Open Source + 1 year free Business Edition |
Open Source + 1 year free Business Edition |
Hardware Specifications |
||
Typical Applications | Firewall / Routing & VPN | Firewall / Routing, VPN, IDPS & Webproxy |
GbE RJ45 Ports [ 10/100/1000Mbps ] |
4 | 4 |
USB Ports | 1 | 1 |
Console Port |
1 | 1 |
Internal Storage |
16GB Solid State Flash | 256GB Solid State Flash |
Memory | 4GB DDR3 | 8GB DDR3 |
CPU Cores |
4 (max frequency 1.6Ghz) | 4 (max frequency 1.6Ghz) |
Virtual Interfaces (802.1q VLANS)1 |
4093 | 4093 |
System Performance |
||
Firewall Throughput |
3300Mbps | 3300Mbps |
Firewall Packets Per Second |
250Kpps | 250Kpps |
Firewall Port to Port Throughput |
941Mbps | 941Mbps |
Firewall Port to Port Packets Per Second |
78Kpps | 78Kpps |
Concurrent Sessions |
3000000 | 7000000 |
Connections Per Second | 35000 | 35000 |
Firewall Latency (average) |
200us | 200us |
Firewall Policies (Recommended Maximum)1 |
10000 | 10000 |
IPsec VPN Throughput (AES256GCM16) |
600Mbps | 600Mbps |
IPsec VPN Packet Per Second (AES256GCM16) |
50Kpps | 50Kpps |
Threat Protection Throughput Packet Per Second |
N/A | 29Kpps |
Threat Protection Throughput |
N/A | ~327Mbps |
High Availability with State Synchronisation |
Requires Two | Requires Two |
Dimensions | ||
Height x Width x Length (mm) |
27 x 200 x 146 | 27 x 200 x 146 |
Height x Width x Length (inches) |
1.07 x 7.87 x 5.75 | 1.067 x 7.87 x 5.75 |
Form Factor |
Desktop (optional Wallmount) | Desktop (optional Wallmount) |
Weight (appliance only) |
0.9Kg | 1.0 Kg |
Weight (appliance + power supply / ac cord) | 1.2Kg | 1.3Kg |
Environment | ||
Power Requirements |
100-240VAC, 50-60Hz | 100-240VAC, 50-60Hz |
Maximum Current (AC) |
0.8A | 0.8A |
Power Consumption (Typical) |
25W | 25W |
Heat Dissipation |
85 BTU/hr | 85 BTU/hr |
Operating Temperature |
0 to +45°C | 0 to +45°C |
Storage Temperature |
-20 to +70°C |
-20 to +70°C |
Humidity | 10-90% non-condensing |
10-90% non-condensing |
Regulatory Compliance |
||
FCC part 15 Class A, CE, Rohs |
FCC part 15 Class A, CE, Rohs |
|
1 The user interface is designed for normal business usage, large rulesets, high number of users or interface assignments may be less practical.
Total Firewall Throughput is calculated based on system utilization and actual measured port-to-port performance (if both numbers are the same no measurement of system utilization was recorded and maximum theoretical throughput is likely to be higher). Maximum PPS is measured using IMIX. All throughput numbers are based upon maximum packets per second multiplied by standard 1514byte frame size minus additional overhead where applicable. IPsec traffic is measured using AES256GCM16 via a routed tunnel.Latency is measured as an average over 60 seconds with system at 80% of maximum load and 256byte UDP packages . IPS performance is measured using a EMIX simulation. Concurrent sessions are based upon memory available, where one state consumes 1KB of memory and 1GB of memory is reserved for system tasks.
Package Contents:
- Desktop appliance
- Matching powercord
- Power supply
- Configuration cable
- Quickstart guide
Warranty
All OPNsense® Security Appliances come with 2 Year Carry-in & Return Warranty.
